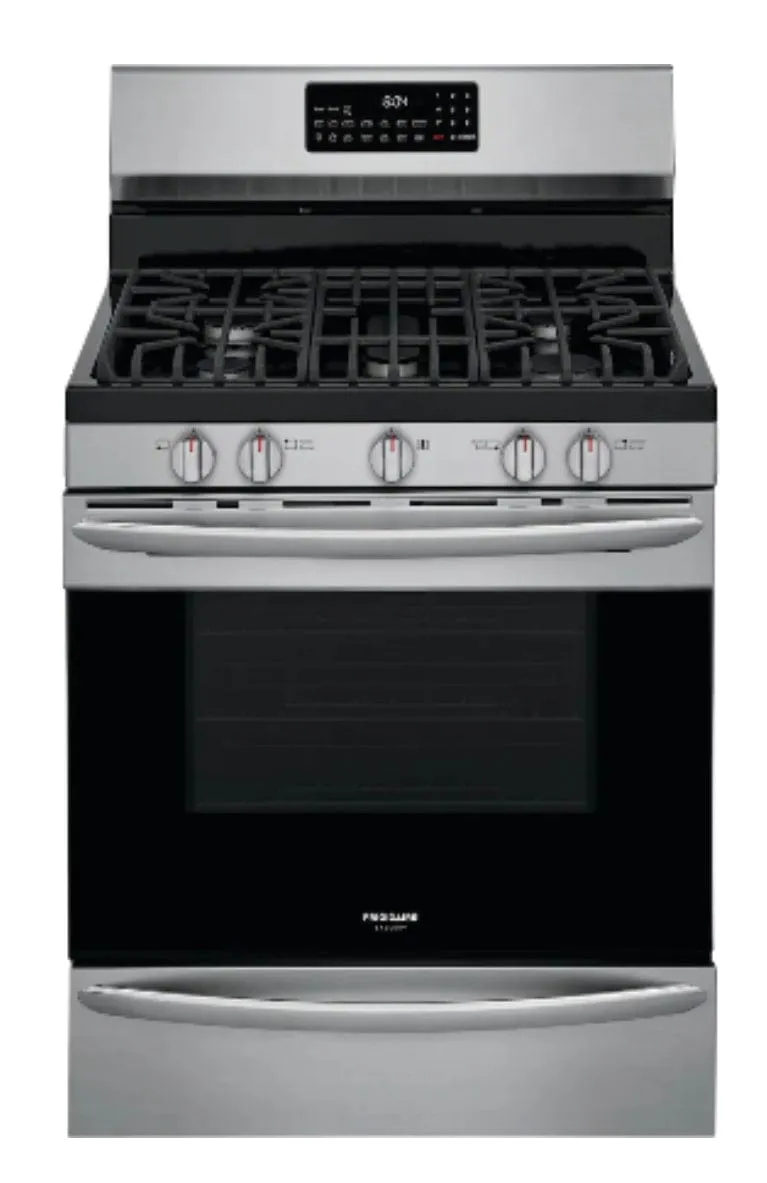

Product Line Gas Range
Power Type NG
Size 30"
Installation Type Free-Standing
Factory Springfield
Color Stainless Steel
Cooktop
Cooking Surface Type Gas
Grate Material Cast Iron
Grate Quantity 3
Grate Style Continuous
Griddle Included Yes
Cooktop Performance
Right Front Element Burner 18000 BTU
Right Rear Element Burner 5000 BTU
Left Front Element Burner 9500 BTU
Left Rear Element Burner 14000 BTU
Center Element Burner 10000 BTU

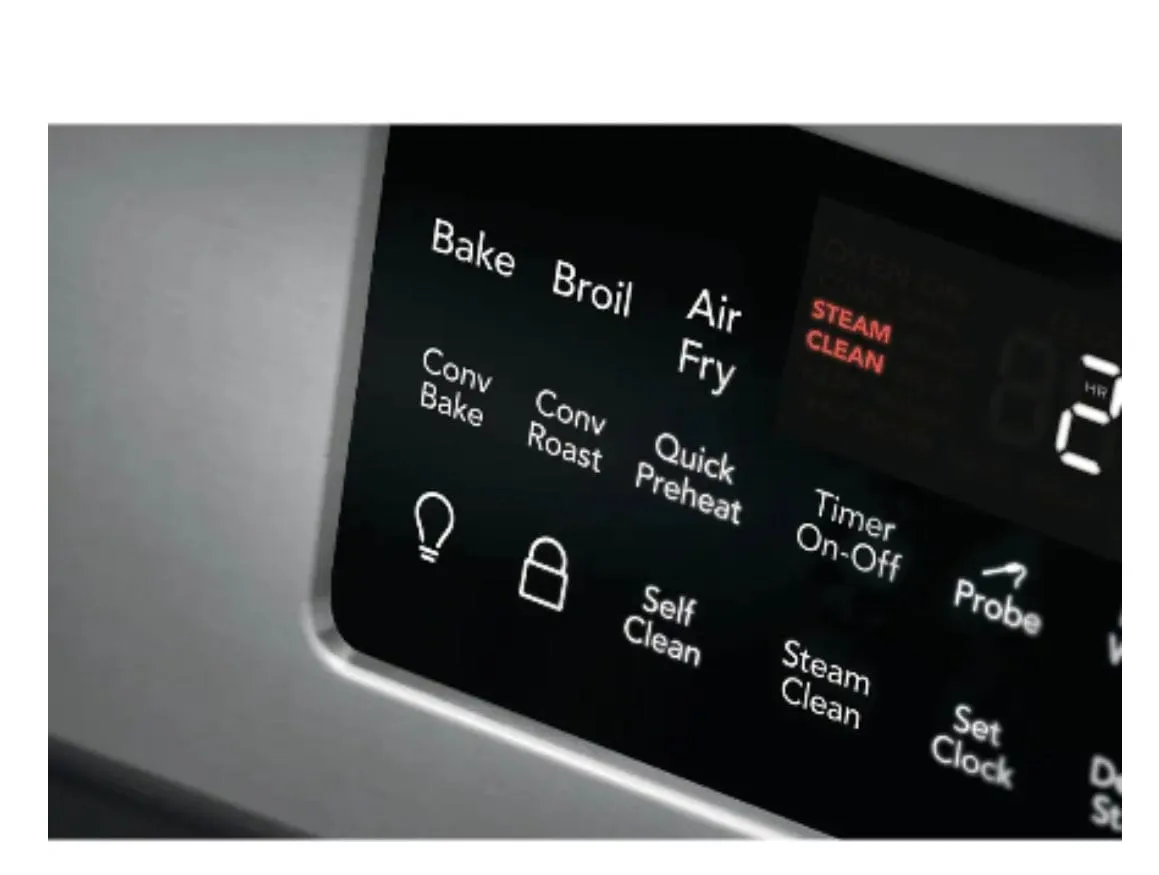

Cooking Controls
Add A Min Yes
Air Fry Yes
Bake Yes
Broil Yes
Cancel Yes
Clock Yes
Convection Bake Yes
Convection Convert Yes
Convection Roast Yes
Delay Clean Yes
Delay Start Yes
Door Lock Yes
Fast Preheat Yes
Keep Warm Yes
Kitchen Timer Yes
Off Yes
Preheat Yes
Probe Yes
Self Clean Yes
Steam Clean Yes
Temperature Display Yes

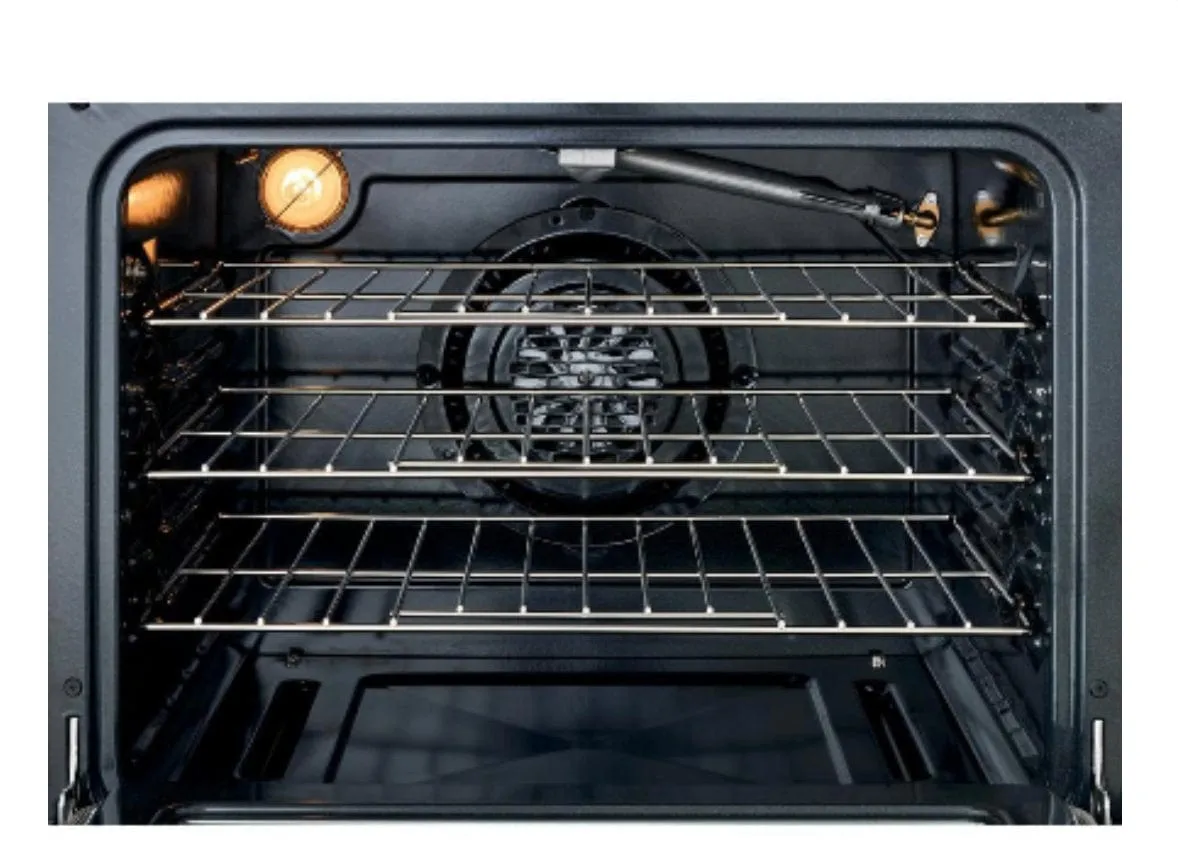

Oven
Bake Element 18000 BTU
Bake System Yes
Broil System Yes
Convection Element 900 Watts
Number of Rack Positions 6
Rack Position Type Nickel Ladder
Rack Type 1 Quantity 3
Window Type Extra Large Visual
Drawer
Drawer Type Storage
Display
Control Location Rear
Display Interface Color White
Display Type Membrane
Exterior
Cooktop Finish Color Coordinated
Drawer Finish Color Coordinated
Exterior Finish Smudge-Proof® Stainless Steel
Handle Color Color Coordinated
Knob Color Color Coordinated
Dimensions and Volume
Height 48 1/2"
Width 30"
Depth 25 3/4"
Depth With Door 90° Open 46 5/8"
Depth With Handle 29 1/4"
Oven Interior Height 18 5/8"
Oven Interior Width 24 3/8"
Oven Interior Depth 19 1/8"
Oven Capacity 5 Cu. Ft.
Electrical Specifications
Minimum Circuit Required 12 Amps
Voltage Rating 120 V
Installation
Adjustable Leveling Legs Yes
General Specifications
Product Weight 204.25 lbs
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year
